Ferrite Bead Inductor Ultra Thin / Low DCR Reflow Soldering For Notebook Computer

Ask Lasest Price
Brand Name :	WS
Model Number :	WS-PRS-Ind
Certification :	Rohs
Price :	Negotiation
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	1000000pcs/day
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

Ferrite Bead Inductor Ultra Thin / Low DCR Reflow Soldering For Notebook Computer

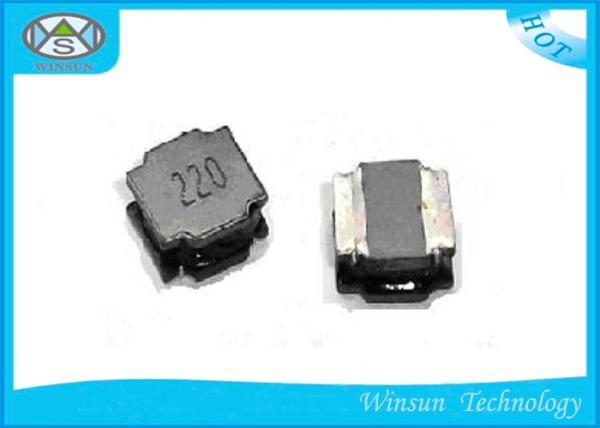

Ultra Thin SMD Power Inductor WS-PRS Series / Unshielded Wire Wound / Low DCR

SPECIFICATIONS:

Inductance Range: 1~220uH
Rated Current : 0.27~4.7A
DCR: 0.018~4 R

Operating temperature range : –40 to + 85°C
Storage temperature range: –10 to + 40°C

FEATURES:

Excellent solderability and high heat resistance
Excellent terminal strength

High Q value , Large range of inductance

Low profile
High saturation current

Magnetic unshielded
SMT type, suitable for reflow solding.

APPLICATIONS:
Portable communication equipment

Dimmers

Switching power supplies

Electric appliances

Notebook Computer

LCD television

Power supply for VTRs

DC/DC converters etc.

Primary advantage:

1) Professional and Experienced engineer
2) Qualified material competative price
3) Prompt Delivery and Good after-sale service
4) RoHs, CE compliant

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Inductance Range	4.7uH~470uH
Rated Current	0.3-2.7A
DCR	0.033~1.6Ω (Max)

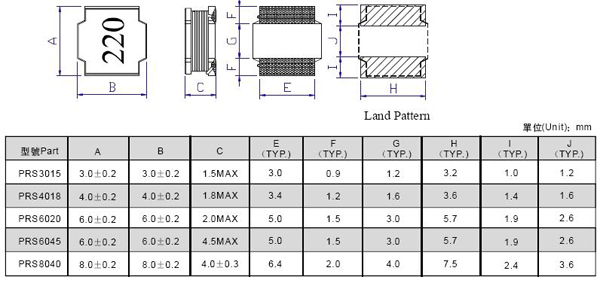

DIMENSION SIZE:(mm)

Part Number	L (μH)	Tolerance	Test Freq.	DCR(Ω)Max	Isat( A)
PRS3015-2R2NT	1 .0	30%	100kHz	0 .030	2 .10
PRS3 015-3R3MT	1 .5	30%	100kHz	0 .040	1 .80
PRS3 015-4R7MT	2 .2	30%	100kHz	0 .060	1 .48
PRS3 015-6R8MT	3 .3	30%	100kHz	0 .080	1 .21
PRS3015- 100MT	4 .7	20%	100kHz	0 .120	1 .02
PRS3015- 150MT	6 .8	20%	100kHz	0 .160	0 .87
PRS3015-1R0NT	10	20%	100kHz	0 .230	0 .70
PRS3015-1R5NT	15	20%	100kHz	0 .360	0 .56
PRS3015- 220MT	22	20%	100kHz	0 .520	0 .47
PRS3015- 330MT	33	20%	100kHz	0 .840	0 .39
PRS3015- 470MT	47	20%	100kHz	1 .340	0 .32
PRS4018-1R0NT	1 .0	30%	100kHz	0 .030	4
PRS4018 - 2R2NT	2 .2	30%	100kHz	0 .060	2.7
PRS4018 -3R3MT	3 .3	20%	100kHz	0 .070	2
PRS4018 -4R7MT	4 .7	20%	100kHz	0 .090	1.7
PRS4018 -6R8MT	6 .8	20%	100kHz	0.11	1.45
PRS4018 - 100MT	10	20%	100kHz	0 .180	1.2
PRS4018 - 150MT	15	20%	100kHz	0 .250	0.94
PRS4018- 220MT	22	20%	100kHz	0 .360	0.8
PRS4018- 330MT	33	20%	100kHz	0 .530	0.65
PRS4018- 470MT	47	20%	100kHz	0 .650	0.57
PRS4018- 680MT	68	20%	100kHz	1 .000	0.47
PRS4018- 101MT	100	20%	100kHz	1 .500	0.4
PRS4018- 151MT	150	20%	100kHz	2 .500	0.31
PRS4018- 221MT	220	20%	100kHz	4 .000	0.27
