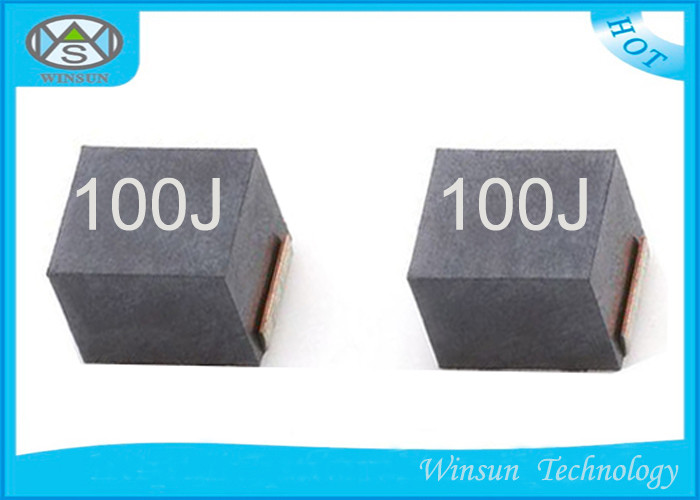

Ferrite Shielded NLV25T100JPF TDK 1008 10uH Chip Wire Wound Inductor

SPECIFICATIONS:

* Inductance: 10uH

* Size: 2.5x2.0x1.8mm (LxWxT)

* Rated Current : 155mA(Max)

* DCR : 3.5Ω (Max)

* Test frequency: 2.52M Hz

* Operating temperature range :–40 ~ +105°C
* Storage temperature range: –40 ~ +105°C

* Accurate dimensions for automatically surface mounted...

* Countermeasures for complying with CE; FCC VDE or vccl radialiated emissions

* Minature size, suitable for SMT;
* Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
* Low DC resistance , high current and high inductance;
* Execellent in solderability and heat resistance.

* The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
* Lead-free material is used for the plating on the terminal
* The electrical characteristics, reliability, shape and pad shape
are the same as the previous NL series.
* The product uses metal terminals, which realize excellent
connection reliability.
* Highly heat resistant thermoplastic resin is used to form the
exterior package.
* From 0.01μH to 100μH, all of the products in the E-12 series are
J(±5%) tolerance products.
* This product is in compliance with the RoHS Directive. Other
products with specifications that do not include exemption
regulations are also available.

APPLICATIONS:

* Computer products. (hard disk; Floppy disks. etc.)

* Modems; OA products; TV set; Vcrs...etc.
* Audio-visual equipment including TVs, VCRs and digital cameras.
* Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.
* Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
* Other electronic equipment including HDDs and ODDs.

PRODUCT IDENTIFICATION:

* NLV 25T- 100J - PF
(1) (2) (3) (4)(5) (6)

(1)Series name

(2)Dimensions: 2.5×2.0×1.8mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 100=10uH

(5)Inductance tolerance: J ±5%

(6) Lead-free compatible product: PF Lead-free compatible product

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

DIMENSIONS : (unit: mm/inch)
