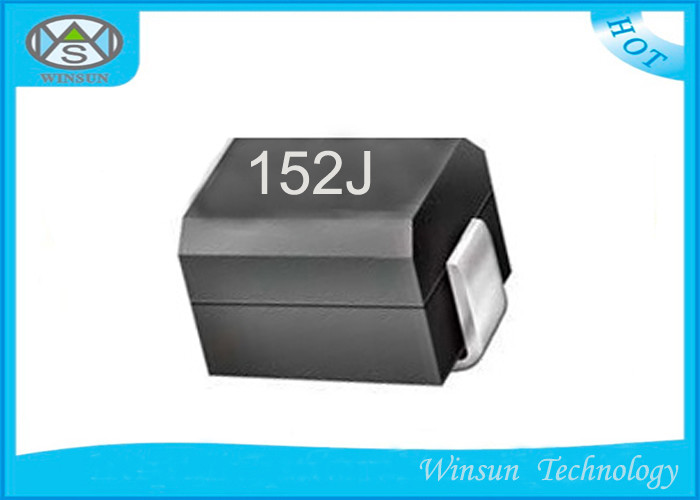

NL565050T152JPF 5650 1.5mH TDK Agent Price SMT Ferrite Wire Wound Inductor

SPECIFICATIONS:

* Inductance: 1.5 mH

* Size: 5.6×5.0×5.0mm (L×W×T)

* Rated Current : 70mA(Max)

* DCR : 20 Ω (Max)

* Test frequency: 0.252M Hz
• NL Series NL565050

• Suitable for flow and eflow soldering.
• Shapes and dimensions follow E. I. A. Spec
• Available in various sizes.
• High realiability
• Lead-free material is used for the plating on the terminal.
• The product uses metal terminals, which realize excellent connection reliability.

• The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
• It is a product conforming to RoHS directive.

APPLICATIONS:

• Computer Products
• Mobile Radios
• Cordless Telephones

• Audio-visual equipment including TVs and VCRs.
• Other electronic equipment including HDDs and ODDs.

• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PRODUCT IDENTIFICATION:

* NL 565050 T- 152 J - PF
(1) (2) (3) (4) (5) (6)

(1)Series name

(2)Dimensions: 565050 5.6×5.0×5.0mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 152=1.5mH

(5)Inductance tolerance: J ±5%

(6) Lead-free compatible product: PF Lead-free compatible product

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 400 pieces/reel

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

DIMENSIONS : (unit: mm/inch)
