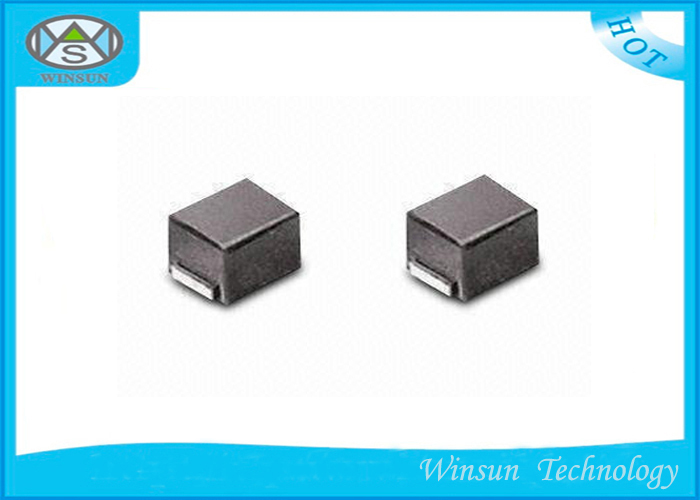

Chip Ferrite Wire Wound Inductor / Made In Shenzhen / High Performance


SPECIFICATIONS:
1, Inductance : 0.01~1000uH
2, Size: 0603~1812
3, Rated Current : 20~1000mA(Max)
4, DCR : 0.13~28 Ω (Max)
5, SRF: 1.4~1150MHz(Min)
6, Operating temperature range :–40 to +85°C
7, Storage temperature range: –10 to +40°C


DIMENSIONS : (unit: mm/inch)

FEATURES:
. Minature size, suitable for SMT;
. Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
. low DC resistance , high current and high inductance;
. Execellent in solderability and heat resistance.
• The product has good heat durability that withstands lead-free compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal
• The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series.
• The product uses metal terminals, which realize excellent connection reliability.
• Highly heat resistant thermoplastic resin is used to form the exterior package.
• From 0.01μH to 1000μH, all of the products in the E-12 series are J(±5%) tolerance products.
• This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.

APPLICATIONS:
• Audio-visual equipment including TVs, VCRs and digital cameras.
• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.
• Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
• Other electronic equipment including HDDs and ODDs.


Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308

Winsun Technology,located in Shenzhen, belongs to Hong Kong winsun group company, is the top professional Electronic Component manufacturer. The founder of Shenzhen manufactory has about 20 years experience in Electronic Components. We have 20000sqm capacitor and inductor workshop, 300 workers, automatic production line, Daily capacity of capacitor and inductor is about 10000k pcs. we are also the agent of world-renowned brands of electronic components.

Our product have passed ISO9001:2008, ROHS, 3C, CE quality authentication, which ensure our products keeping steps with the international quality. We will provide our clients with high cost-performance ration products. We can make un-common product per customers requirements. Our main marketing is America, Canada, brazil, Australia, Iran, Ukraine etc.

Your need is our mission. We firmly believe the high quality of service and support are the keys to keep long business relationship with you. Welcome to visit our factory!
