Chip Ceramic Wire Wound Inductor / High Frequency and Low Impedance WS-FHW-UC Series

SPECIFICATIONS 20~12500MHz(Min)
. Inductance : 1nH~10000nH

. Size: 0402~1210

. Rated Current : 0.016-1.36 A

. DCR : 0.03~9.1 Ω (Max)

. SRF: . Operating temperature range :–40 to +125°C
. Storage temperature range: –10 to +40°C

. Minature size, suitable for SMT;
. Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
. Execellent in solderability and heat resistance.
. High Q value and Tight inductance tolerance . Execellent in solderability and heat resistance.
• The product has good heat durability that withstands lead-free compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal
• The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series.
• The product uses metal terminals, which realize excellent connection reliability.
• Highly heat resistant thermoplastic resin is used to form the exterior package.
• From 1nH to 10000nH, all of the products in the E-12 series are J(±5%) tolerance products.
• This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.

APPLICATIONS

. Portable communication equipment and PDA;
. High speed electronic device; 150~1360mA(Max)
. Used for radiation high speed noise suppression.

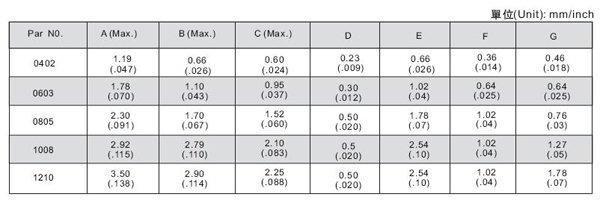

DIMENSIONS : (unit: mm/inch)
