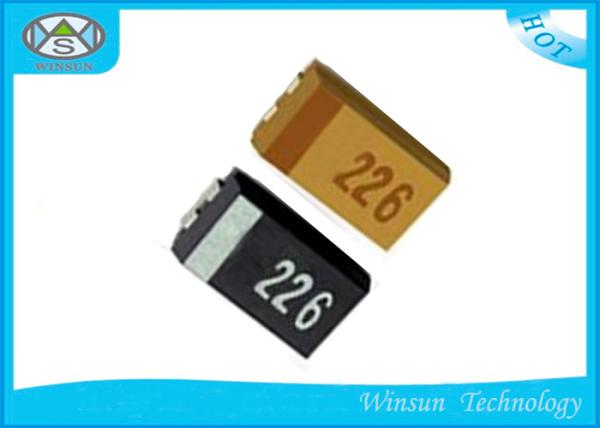

Case B Type AVX TAJ Series Standard SMD Tantalum Capacitor From 0.15uF to 220uF
General Characteristics:
1, Tape: Case - B series.
2, Capacitance Range: 0.15μF - 220μF.
3, Voltage Range: 4V - 50V.
4, Capacitance Tolerance: ± 20%, ± 10%
5, Operating temperature: -55~ +125 C (above 85, use dreaded
voltage).
6, DC leakage current(20): I0 ≤ 0.01CRUR or 0.5μA (whichever is
greater ).
7, Climatic category: 55/125/21.
8, Life test: 2000 hours.
9, Reliability: 2% per 1000h at 85 with 0.1Ω/V series impedance 60%
confidence level.
10, Small size
11, Long life
12, Good reliability
13, RoHS meet
Features:
Solid tantalum chip capacitors are designed and manufactured with
the demanding requirements of surface mount technology in mind.
There are P, A, B, C, D, E, six case available. Chip tantalum
capacitors have lower ESR comparing with the dipped tantalum
capacitors. This product is compatible with automatic pick and
place equipment. Suitable for military equipment and computer
mobile phone and other electronic products. It meets the
requirements of EIA 535BAAC and QC300801 Q/YHC 45-01 standard.
| Operating temperature: | -55~ +125 C (above 85, use dreaded voltage). |
| Capacitance Tolerance: | ± 20%, ± 10%. |
| Capacitance Range: | 0.15μF~220μF. |
| Voltage Rating: | 4V~50V. |
| DC leakage current(20): | I0 ≤ 0.01CRUR or 0.5μA (whichever is greater ). |
| Dissipation factor (20): | See table 1. |
| Temperature performance | See table 1. |
| Climatic category: | 55/125/21. |
| Life test: | 2000 hours. |
| Reliability: | 2% per 1000h at 85 with 0.1Ω/V series impedance 60% confidence
level. |
Case Exterior Dimensions:
| Code | EIA Code(inch) | EIA Metric(mm) | L±0.2mm | W±0.2mm | H±0.2mm | W1±0.2mm | A±0.2mm |
| B | 1210 | 3528-21 | 3.50 | 2.80 | 1.90 | 2.20 | 0.80 |
Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
CAPACITANCE AND RATED VOLTAGE, VR (VOLTAGE CODE) RANGE :
(LETTER DENOTES CASE SIZE)
| Capacitance | Rated voltage DC (VR) to 85°C |
| μF | Code | 2.5V (e) | 4V (G) | 6.3V (J) | 10V (A) | 16V (C) | 20V (D) | 25V (E) | 35V (V) | 50V (T) |
| 0.10 | 104 | | | | | | | | A | A |
| 0.15 0.22 | 154 224 | | | | | | | | A A | A/B A/B |
| 0.33 | 334 | | | | | | | | A | B |
| 0.47 0.68 | 474 684 | | | | | | A | A A | A/B A/B | A/B/C A/B/C |
| 1.0 1.5 2.2 | 105 155 225 | | | A | A A | A A A/B | A A A/B | A A/B A/B | A/B A/B/C A/B/C | A(M)/B/C C/D C/D |
| 3.3 4.7 6.8 | 335 475 685 | | A A | A A A/B | A A/B A/B | A/B A/B A/B/C | A/B A/B/C A/B/C | A/B/C A/B/C B/C | B/C B/C/D C/D | C/D C/D C/D |
| 10 15 22 | 106 156 226 | | A A/B A | A/B A/B A/B/C | A/B/C A/B/C A/B/C | A/B/C A(M)/B/C B/C/D | B/C B/C/D B/C/D | B/C/D C/D C/D | C/D/E C/D D/E | D/E/V D/E/V V |
| 33 47 68 | 336 476 686 | A A A | A/B A/B A/B/C | A/B/C A/B/C/D B/C/D | A/B/C/D B/C/D B/C/D | B/C/D C/D C/D | C/D C/D/E C(M)/D/E | D/E D/E E/V | D/E/V E/V V(M) | |
| 100 150 220 | 107 157 227 | A/B B B/D | A/B/C B/C B(M)/C/D | B/C/D B(M)/C/D C/D/E | B(M)/C/D/E C/D/E C/D/E | C/D/E D/E/V E/V | D/E/V E/V | E(M)/V | | |
| 330 470 680 | 337 477 687 | D C/D C/D/E | C/D/E C/D/E D/E | C/D/E D/E/V E/V | D/E/V E/V | V | | | | |
| 1000 | 108 | D(M)/E | D/E/V | V(M) | | | | | | |
| 1500 | 158 | D/E/V(M) | E/V(M) | | | | | | | |
| 2200 | 228 | V(M) | | | | | | | | |
Non preferred Ratings - not recommended for new designs,
higher voltage or smaller case size substitution are offered.
Engineering samples - please contact manufacturer
Codes under development - subject to change.
Released codes (M tolerance only)
Note: Voltage ratings are minimum values. AVX reserves the right to
supply
higher ratings in the same case size, to the same reliability
standards.
