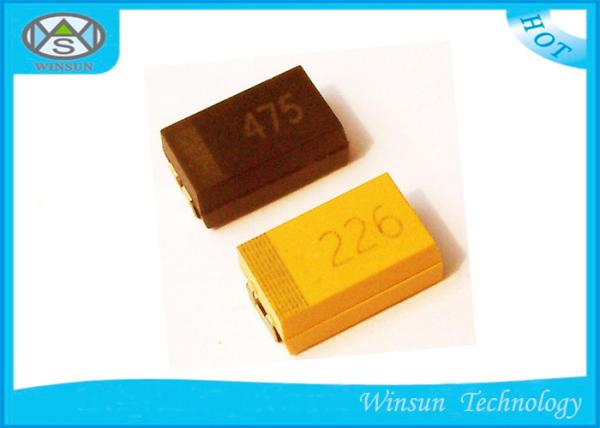

Case D Large Capacitance Chip / SMD Tantalum Capacitor From 1.5uF
to 1500uF
General Characteristics:
1, Tape: Case - D Series
2, Capacitance Range: 1.5μF - 1500μF.
3, Voltage Range: 2.5V - 50V.
4, Capacitance Tolerance: ± 20%, ± 10%
5, Operating temperature: -55~ +125 C (above 85, use dreaded
voltage).
6, DC leakage current(20): I0 ≤ 0.01CRUR or 0.5μA (whichever is
greater ).
7, Climatic category: 55/125/21.
8, Life test: 2000 hours.
9, Reliability: 2% per 1000h at 85 with 0.1Ω/V series impedance 60%
confidence level
10, Packing: 2,000 units / reel
11, SMD Tantalum Capacitor Mass Stock
Features:
Solid tantalum chip capacitors are designed and manufactured with
the demanding requirements of surface mount technology in mind.
There areP, A, B, C, D, E, six case available. Chip tantalum
capacitors have lower ESR comparing with the dipped tantalum
capacitors. This product is compatible with automatic pick and
place equipment. Suitable for military equipment and computer
mobile phone and other electronic products. It meets the
requirements of EIA 535BAAC and QC300801 Q/YHC 45-01 standard.
| Operating temperature: | -55~ +125 C (above 85, use dreaded voltage). |
| Capacitance Tolerance: | ± 20%, ± 10%. |
| Capacitance Range: | 1.5μF~1500μF. |
| Voltage Rating: | 2.5V~50V. |
| DC leakage current(20): | I0 ≤ 0.01CRUR or 0.5μA (whichever is greater ). |
| Climatic category: | 55/125/21. |
| Life test: | 2000 hours. |
| Reliability: | 2% per 1000h at 85 with 0.1Ω/V series impedance 60% confidence
level. |
Case Exterior Dimensions:
| Code | EIA Code(inch) | EIA Metric(mm) | L±0.2mm | W±0.2mm | H±0.2mm | W1±0.2mm | A±0.2mm |
| D | 2917 | 7343-31 | 7.30 | 4.30 | 2.90 | 2.40 | 1.30 |
| AVX Part No. | Case Size | Cap (μF) | Rated Voltage (V) | DCL(μA) Max. | DF % Max. | ESR Max.(Ω)@100kHz |
| 2.5 Volt @ 85ºC (1.7 Volt @ 125ºC) |
| TAJA476*002#NJ | A | 47 | 2.5 | 0.9 | 6 | 3 |
| TAJA686*002#NJ | A | 68 | 2.5 | 1.4 | 8 | 1.5 |
| TAJA107*002#NJ | A | 100 | 2.5 | 2.5 | 30 | 1.4 |
| TAJB107*002#NJ | B | 100 | 2.5 | 2.5 | 8 | 1.4 |
| TAJB157*002#NJ | B | 150 | 2.5 | 3 | 10 | 1.6 |
| TAJB227*002#NJ | B | 220 | 2.5 | 4.4 | 16 | 1.6 |
| TAJD227*002#NJ | D | 220 | 2.5 | 5.5 | 8 | 0.3 |
| TAJD337*002#NJ | D | 330 | 2.5 | 8.2 | 8 | 0.3 |
| TAJC477*002#NJ | C | 470 | 2.5 | 9.4 | 12 | 0.2 |
| TAJD477*002#NJ | D | 470 | 2.5 | 11.6 | 8 | 0.2 |
| TAJC687*002#NJ | C | 680 | 2.5 | 17.0 | 18 | 0.2 |
| TAJD687*002#NJ | D | 680 | 2.5 | 17 | 16 | 0.2 |
| TAJE687*002#NJ | E | 680 | 2.5 | 17 | 10 | 0.2 |
| TAJD108M002#NJ | D | 1000 | 2.5 | 25 | 20 | 0.2 |
| TAJE108*002#NJ | E | 1000 | 2.5 | 20 | 14 | 0.4 |
| TAJD158*002#NJ | D | 1500 | 2.5 | 37.5 | 60 | 0.2 |
| TAJE158*002#NJ | E | 1500 | 2.5 | 37 | 20 | 0.2 |
| TAJV158M002#NJ | V | 1500 | 2.5 | 30 | 20 | 0.2 |
| TAJV228M002#NJ | V | 2200 | 2.5 | 55 | 50 | 0.2 |
| 4 Volt @ 85ºC (2.7 Volt @ 125ºC) |
| TAJA336*004#NJ | A | 33 | 4 | 1.3 | 6 | 3 |
| TAJA476*004#NJ | A | 47 | 4 | 1.9 | 8 | 2.6 |
| TAJA686*004#NJ | A | 68 | 4 | 2.7 | 10 | 1.5 |
| TAJB686*004#NJ | B | 68 | 4 | 2.7 | 6 | 1.8 |
| TAJA107*004#NJ | A | 100 | 4 | 4 | 30 | 1.4 |
| TAJB107*004#NJ | B | 100 | 4 | 4 | 8 | 0.9 |
| TAJB157*004#NJ | B | 150 | 4 | 6 | 10 | 1.5 |
| TAJC157*004#NJ | C | 150 | 4 | 6 | 6 | 0.3 |
| TAJB227M004#NJ | B | 220 | 4 | 8.8 | 12 | 1.1 |
| TAJC227*004#NJ | C | 220 | 4 | 8.8 | 8 | 1.2 |
| TAJD227*004#NJ | D | 220 | 4 | 8.8 | 8 | 0.9 |
| TAJC337*004#NJ | C | 330 | 4 | 13.2 | 8 | 0.9 |
| TAJD337*004#NJ | D | 330 | 4 | 13.2 | 8 | 0.9 |
| TAJC477*004#NJ | C | 470 | 4 | 18.8 | 14 | 0.3 |
| TAJD477*004#NJ | D | 470 | 4 | 18.8 | 12 | 0.9 |
| TAJE477*004#NJ | E | 470 | 4 | 18.8 | 10 | 0.5 |
| TAJD687*004#NJ | D | 680 | 4 | 27.2 | 14 | 0.5 |
| TAJE687*004#NJ | E | 680 | 4 | 27.2 | 14 | 0.9 |
| TAJD108*004#NJ | D | 1000 | 4 | 40 | 60 | 0.2 |
| TAJE108*004#NJ | E | 1000 | 4 | 40 | 14 | 0.4 |
| TAJV108*004#NJ | V | 1000 | 4 | 40 | 16 | 0.4 |
| TAJE158*004#NJ | E | 1500 | 4 | 60 | 30 | 0.2 |
| TAJV158M004#NJ | V | 1500 | 4 | 60 | 30 | 0.2 |
| 6.3 Volt @ 85ºC (4 Volt @ 125ºC) |
| TAJA106*006#NJ | A | 10 | 6.3 | 0.6 | 6 | 4 |
| TAJA156*006#NJ | A | 15 | 6.3 | 0.9 | 6 | 3.5 |
| TAJA226*006#NJ | A | 22 | 6.3 | 1.4 | 6 | 3 |
| TAJA336*006#NJ | A | 33 | 6.3 | 2.1 | 8 | 2.5 |
| TAJA476*006#NJ | A | 47 | 6.3 | 2.8 | 10 | 1.6 |
| TAJB476*006#NJ | B | 47 | 6.3 | 3 | 6 | 2 |
| TAJC476*006#NJ | C | 47 | 6.3 | 3 | 6 | 1.6 |
| TAJB686*006#NJ | B | 68 | 6.3 | 4 | 8 | 0.9 |
| TAJC686*006#NJ | C | 68 | 6.3 | 4.3 | 6 | 1.5 |
| TAJB107*006#NJ | B | 100 | 6.3 | 6.3 | 10 | 1.7 |
| TAJC107*006#NJ | C | 100 | 6.3 | 6.3 | 6 | 0.9 |
| TAJB157M006#NJ | B | 150 | 6.3 | 9.5 | 10 | 1.2 |
| TAJC157*006#NJ | C | 150 | 6.3 | 9.5 | 6 | 1.3 |
| TAJD157*006#NJ | D | 150 | 6.3 | 9.5 | 6 | 0.9 |
