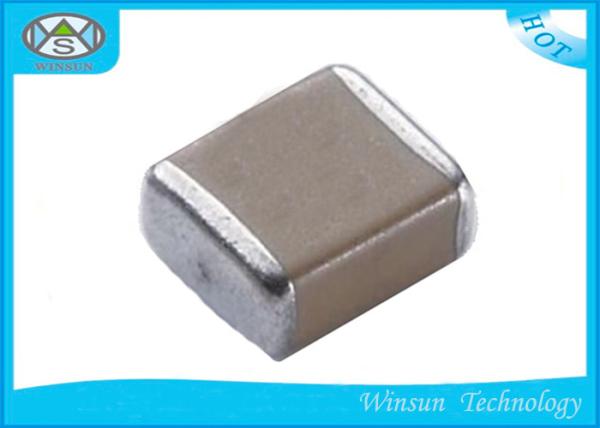

Large Size 2225 / 5763 MLCC Chip / SMD Multilayer Ceramic Capacitor
SUMMARY:
● Types of Dielectric Material and Capacitor
※ HIGH FREQUENCY TYPE: The capacitor of this kind dielectric
material is considered
as ClassⅠcapacitor, including
high frequency COG,COH capacitor and temperature compensating
capacitor such
as HG, LG, PH, RH,SH, TH, UJ,
SL. The electrical properties of COG,COH capacitor are the most
stable one and change
invariablly with temperature,voltage and time. They are suited for
applications where low-losses
and high-stability are required, HG,LG,PH,RH,SH,TH,UJ,SL
capacitor’s capacitance
changes with temperature.They are suited for applications where
low-losses
and temperature compensating circuits.
※ X7R,X5R:X7R,X5R material is a kind of material has high
dielectric constant.
The capacitor made of this kind
material is considered as Class Ⅱ capacitor whose capacitance is
higher than that of class Ⅰ.
These capacitors are
classified as having a semi-stable temperature characteristic and
used over a wide temperature range,
such in these kinds of circuits, DC-blocking, decoupling,
bypassing, frequency discriminating etc.
※ Y5V:The capacitor made of this kind of material is the highest
dielectric constant of all ceramic capacitors. They are used over a
moderate temperature range in application where high capacitance is
required because
of its unstable temperature coefficient, but where moderate losses
and capacitance changes can be tolerated. Its capacitance and
dissipation factors are sensible to measuring conditions, such as
temperature and voltage
※ Z5U:The capacitor made of this kind of material is considered as
ClassⅡ capacitor, whose
temperature characteristic is between that of X7R and Y5V. The
capacitance of this kind of capacitor is unstable and sensible to
temperature and voltage. Ideally suited for bypassing and
decoupling application circuits operating with low DC bias in the
environmentapproaches to room temperature.
Features:
* Size : 2225 / 5763
* Capacitance Range: 0.5PF~100uF
* Voltage range: 6.3V ~2000V
* Capcitance Tolerance: +/-5%; +/-10% ; +/-20% ; +80/-20%
* RoHS Compliant, Lead free
* It has multi-layer nonolithic structure, has high reliability.
* It has good solderability and soldering resistance, suitable for
flow soldering/reflow soldering.
Applications:
* It is for General purpose etc...
| Size | 2225 / 5763 |
| Capacitance Range | 0.5PF~100uF |
| Voltage range | 6.3V ~2000V |
Dimension Size:
| Item | Size(mm) |
| inch | cm | L | W | T | WB |
| 2225 | 5763 | 5.7±0.50 | 6.30±0.50 | ≤3.50 | 1.0±0.40 |
