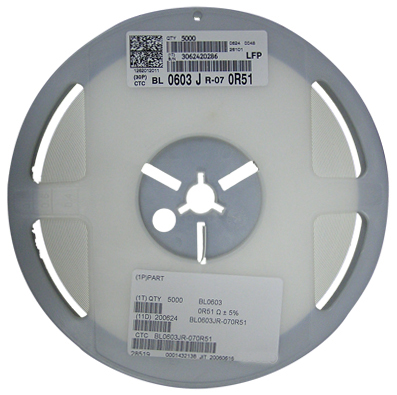

Miniature Metal Oxide Film Resistor 0201 - 2512 High Reliability Thin Film Resistor

Metal Oxide Film Resistor / Thick Film SMD Chip Resistor Of Size 0201 - 2512

We can make un-common product per customers requirements.

Features:

*Size Range: 0201~2512
*Resistance Range:0R~10M
*Resistance Tolerance: +/-5%; +/-1%
*It can reduce the area and weight of the PCB for its small size and light.
*Operating ambient temperature: -55°C to +125°C.
*High credibility:the thick metal film resistor body is added with glass protective layer and three layers of electrode composition.
*The appearance dimension is symmetrical and accurate for easy assembly.

* Minitature and light weight.
* Suit for reflow and wave flow solder
* Stable electrical capability,high reliability.
* Low assembly cost, suit for automatic SMT euipment.
* Superior mechanical and frequency characteristics.
* Rohs compliant

TYPE	0201	0402	0603	0805	1206	1210	2010	2512
POWER RATING AT 70℃	1/20W	1/16W	1/16W (1/10WS)	1/10W (1/8WS)	1/8W (1/4WS)	1/4W (1/2WSS)	1/2W (3/4WS)	1W
L	0.60±0.03	1.0±0.10	1.60±0.10	2.00±0.15	3.10±0.15	3.10±0.10	5.00±0.10	6.35±0.10
W	0.30±0.03	0.50±0.05	+0.15 0.80	+0.15 1.25	+0.15 1.55	+0.15 2.60	+0.15 2.50	+0.15 3.20
H	0.23±0.03	0.35±0.05	0.45±0.10	0.55±0.10	0.55±0.10	0.55±0.10	0.55±0.10	0.55±0.10
A	0.10±0.05	0.20±0.10	0.30±0.20	0.40±0.20	0.45±0.20	0.50±0.25	0.60±0.25	0.60±0.25
B	0.15±0.05	0.25±0.10	0.30±0.20	0.40±0.20	0.45±0.20	0.50±0.20	0.50±0.20	0.50±0.20
RESISTANCE VALUE OF JUMPER	＜50mΩ	＜50mΩ	＜50mΩ	＜50mΩ	＜50mΩ	＜50mΩ	＜50mΩ	＜50mΩ
JUMPER RATED CURRENT	0.5A	1A	1A	2A	2A	2A	2A	2A
JUMPER RATED MAX OVERLOAD CURRENT	1A	2A	2A	5A	10A	10A	10A	10A
MAX WORKING VOLTAGE	25V	50V	50V	150V	200V	200V	200V	200V
MAX OVERLOAD VOLTAGE	50V	100V	100V	300V	400V	500V	500V	500V
DIELECTRIC WITHSTANDING VOLTAGE	--	100V	300V	500V	500V	500V	500V	500V
±0.5%	--	1Ω-10MΩ	1Ω-10MΩ	1Ω-10MΩ	1Ω-10MΩ	1Ω-10MΩ	1Ω-10MΩ	1Ω-10MΩ
±1%	1Ω-10MΩ	0.2Ω ---22MΩ	0.1Ω ---33MΩ	0.1Ω ---33MΩ	0.1Ω ---33MΩ	0.1Ω ---10MΩ	0.1Ω ---22MΩ	0.1Ω ---33MΩ
±2%	1Ω-10MΩ	0.2Ω ---22MΩ	0.1Ω ---33MΩ	0.1Ω ---33MΩ	0.1Ω ---33MΩ	0.1Ω ---22MΩ	0.1Ω ---22MΩ	0.1Ω ---33MΩ
±5%	1Ω-10MΩ	0.2Ω ---22MΩ	0.1Ω ---100MΩ	0.1Ω ---100MΩ	0.1Ω ---100MΩ	0.1Ω ---100MΩ	0.1Ω ---22MΩ	0.1Ω ---33MΩ
OPERATING TEMPERATURE	-55℃ ~ +155℃

Applications:
Widely and largely used in the Electronic, Electronical and Information Industries.

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .	±100ppm/℃
Short time overload	2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds.	ΔR≤±(0.5%R0+0.05Ω)
Pulse overload	At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ).	ΔR≤±(1%R0+0.05Ω)
Resistance to soldering heat	Immerge into 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(0.5%R0+0.05Ω)
Solderability	Immerge into 245±3℃ tin stove for 2~3 seconds.	The area of soldering is over 95%
Temperature cycling	At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles.	ΔR≤±(0.5%R0+0.05Ω)
Load life in humidity	Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(2%R0+0.05Ω)
Load life in heat	Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and hal
