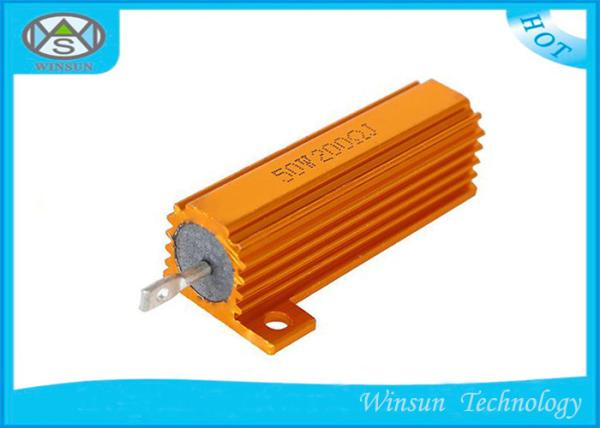

50W 0.01 ohm-33K ohm High Power Wire Wound Power Resistor Gold Aluminum Housed

Ask Lasest Price
Brand Name :	WS
Model Number :	WS-GAH-Res-50W
Certification :	SGS
Price :	Negotiation
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	100000pcs/day
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

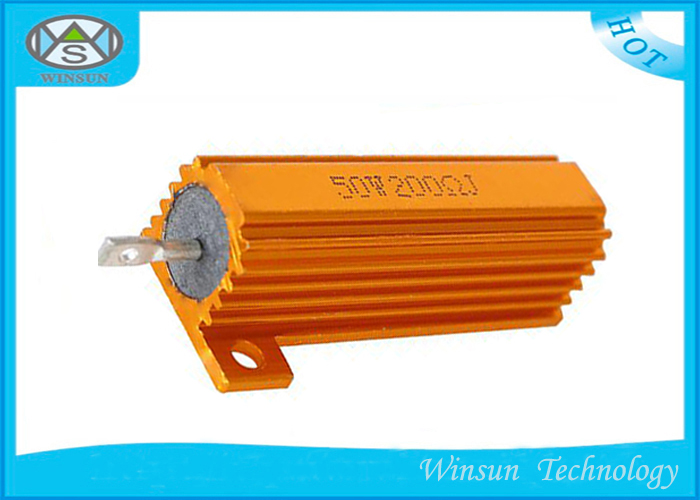

50W 0.01 ohm-33K ohm High Power Wire Wound Power Resistor Gold Aluminum Housed

50W 0.01 ohm - 33K ohm High Power Gold Aluminum Housed Wire Wound Power Resistor

We also can make uncommon product per customers requirements.

Features:
1, Resistance range: 0.01 ohm - 33K ohm
2, Power: 50W
3, Working Voltage: 300V
4, Resistance tolerance: ±1%,±2%,±5%,±10%.
5, 100% original

6, Delivery on time

Applications:
Widely used in power supply, transducer, elevator,arena audio and

high requirement equipment industry

Power Supply

Inverter

Medical Equipment

Burn-in System etc..

Specifications Performance:

Part No.

Power

Max Working Voltage

Max Loaded Voltage

Withstand Voltage

LRX50B

50W

300V

800V

Description	Power	Tolerance	Range
LRX Gold Aluminum Housed Wire-wound Resistors	50W	±1% ±5% ±10%	0.01R-33K
TRX Trapezium Aluminum Housed Wire-wound Resistors	40W 60W 80W 100W 120W,150w,200w,300w,400w,500w,600w,800w,1000w	±1% ±5% ±10%	1R-100K
CRX Boat Type Aluminum Housed Wire-wound Resistors	50W 100W 150W	±1% ±5% ±10%	1R-100K

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature added 100℃,calculate per ℃ resistance value rate.	±300ppm/℃
Short time overload	According 10 times rated power to account the voltage or max .overload voltage (get the lower)for 5 seconds.	ΔR≤±(2%R0+0.05Ω)
Resistance to soldering heat	Immerge into the 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(1%R0+0.05Ω)
Solderability	Immerge into the 245±3℃ tin stove for 2~3 seconds.	The area of soldering is over 95%
Temperature cycling	At -55℃ for 30 min,then at +25℃ for 10~15 min,then at +275℃ for 30 min,then at +25℃ for 10~15min, total 5 cycles.	ΔR≤±(1%R0+0.05Ω)
Load life in humidity	Overload rated voltage or Max. working voltage(get the lower) for 1000 hours (1.5 hours on and half-hours off) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(5%R0+0.05Ω)
Load life in heat	Overload rated voltage or Max. working voltage(get the lower)m for 1000 hours (1.5 hours on and half-hours off) at the 70±2℃.	ΔR≤±(5%R0+0.05Ω)
Terminal strength	Pull:10N	ΔR≤±(2%R0+0.1Ω)
Vibration	Frequency:10~55Hz,Swing:0.75mm,Test time:6Hours	ΔR≤±(2%R0+0.1Ω)
Nonflammability	Respectively load AC voltage by5,10,16 times rated power for 5 mi

Fixed resistors for electronic equipment Part IV General specification.

OEM small size gold aluminum high wattage resistors

Demensions:

OEM small size gold aluminum high wattage resistors

Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308
