    Film Sealed NTC Thermistor Yellow With Enameled Wire 30K Ohm 47K Ohm / R For Computer

    Ask Lasest Price
    Brand Name : WS
    Model Number : WS-MFEP-XXXX
    Certification : SGS
    Price : Negotiation
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    Film Sealed NTC Thermistor Yellow With Enameled Wire 30K Ohm 47K Ohm / R For Computer

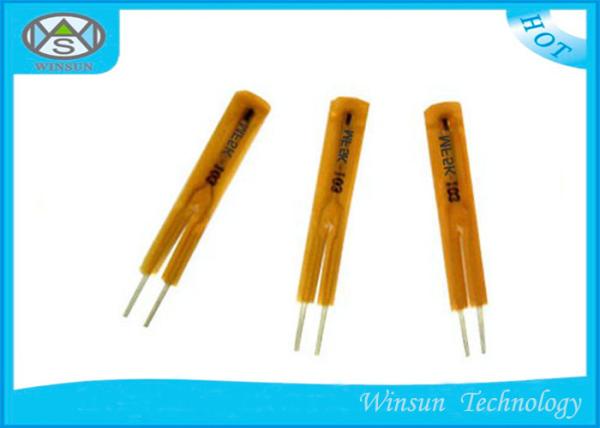

    Film sealed NTC Thermistor with enameled wire 30K ohm 47K ohm / R with body size 4.5X50mm



    Features:
    1. Body size: 4.5X25mm,4.5X50mm,4.5X75mm
    2. resistance range: 30K ohm & 47K ohm
    3. B value range:3950K
    4. -30 ~+100℃ operating temperature range

    5. RoHS compliant

    Recommended applications

    Computer ,Printer ,Home appliances ,Narrow temperature detecting space etc


    Code number and specifications:

    Film Sealed NTC Thermistor Yellow With Enameled Wire 30K Ohm 47K Ohm / R For Computer




    Characteristics:

    Part no.Zero power
    resistance
    @25°C
    Tolerance of R25B valueTolerance of B valueMax. Power Dissipation At 25°CDissipation FactorThermal Time constantOperating temperature range
    R25 (KΩ)( ±%)(K)(±%)Pmax(mW)δ(mW/°C)τ(Sec.)(°C)
    WS-MFEP-3002-3950301,2,3,
    5,10
    25/5039501,2,3,510≧2≦3-30~+120
    WS-MFEP-4702-39504725/503950

    Ps.:can be tailored according to clients’ demand

    operating current:

    In order to make the test more accurate, the running current should be as less as possible. The following formula is suggested:
    I=sqrt(0.005δT^2/(B*R))
    PS.:1.sqrt is for square root
    2. δ is for dissipation constant in mW/℃
    3. T is for temperature in Kelvins
    4.B is for the index of the thermal sensitivity
    5.R is for zero-power resistance in KOHM
    6.final current is in mA

    R-T characteristic curve:


    Reliability test

    No.itemstandardTest conditionsspecifications
    1Low temperature storageIEC 60068-2-21Lowest operating temperature*1000HNo visible damage
    ∣△R25/R25∣≦ 1%
    2High temperature storageIEC 60068-2-21Highest operaing temperature*1000HNo visible damage
    ∣△R25/R25∣≦ 1%
    3Thermal shockIEC 60068-2-1410 cyclesNo visible damage
    ∣△R25/R25∣≦ 1%
    steptemperature(℃)period(ms)
    1Low temperature
    ±5℃
    30±3
    2Room temperature5±3
    3High temperature
    ±5℃
    30±3
    4Room temperature5±3
    (internal test: 100 cycles)
    4Constant temperature and humidityIEC 60068-2-360℃, 93%±3% RH; 1000H
    (internal test: 56 days)
    No visible damage
    ∣△R25/R25∣≦ 1%
    5Life testIEC60539-1
    4.26
    25±5℃, Pmax; 1000hrs
    (internal test: 56 days)
    No visible damage
    ∣△R25/R25∣≦ 1 %

    ● storage conditions:
    1. storage temperature: -10℃~+40℃
    2. relative humidity:≦75%RH
    ● Period of Storage:one year
