High Performance Chip Array Resistor 1m Ohm Resistor 0402 / 0603 For Print PCB

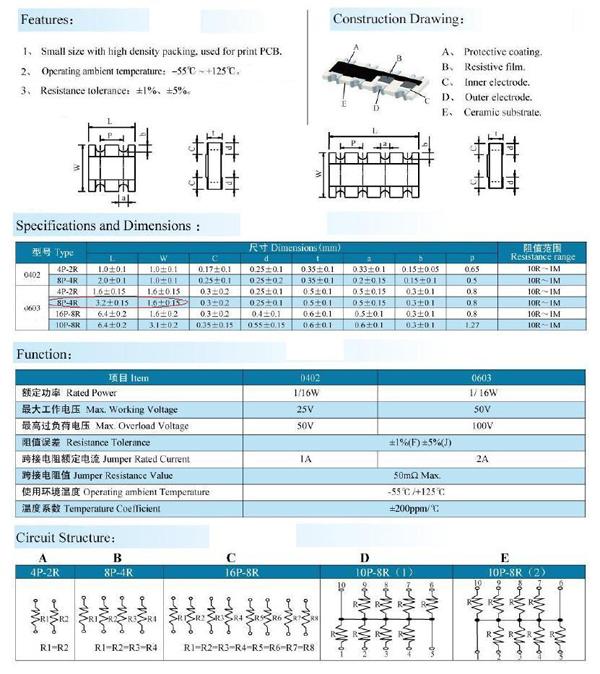

High Performance 0402 0603 8P4R / 4P2R SMD / Chip Array Resistor

We can make un-common product per customers requirements.

Features:

Small size with high density packing. Used for print PCB.
Operating ambient temperature: -55`C to +125`C
Resistance tolerance: ± 1%. ± 5%
Size: 0402,0603
0402: 4P-2R, 8P-4R
0603: 4P-2R, 8P-4R, 10P-8R, 16P-8R

Tolerance: ± 1%. ± 5%
Range: 10R-1M

Test Item Test Condition Performance

Temperature coefficient ±200ppm/

Short time overload R≤±(2%R₀+0.1R)

Resistance to soldering heat R≤±(1% R₀+0.05R)

Solerability The soldering area is over 95%

Temperature cycling R≤±(0.5% R₀+0.05R)

Load life in humidity R≤±(3% R₀+0.1R)

Load life in heat R≤±(3% R₀+0.1R)

Bending strength R≤±(1% R₀+0.05R)

Description	Size	Tolerance	Range

RCM Chip Array Resistors	0402:4P-2R 8P-4R 0603: 4P-2R 8P-4R 10P-8R 16P-8R	±5% ±1%	10R-1M
GRA Array Resistors	1/8W: 4P-14P	±5% ±2% ±1%	10R-1M

Performance Test:

Test Item	Test Condition	Performance
Temperature coefficient	Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate .	±100ppm/℃
Short time overload	2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds.	ΔR≤±(0.5%R0+0.05Ω)
Pulse overload	At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ).	ΔR≤±(1%R0+0.05Ω)
Resistance to soldering heat	Immerge into 350±10℃ tin stove for 2~3 seconds.	ΔR≤±(0.5%R0+0.05Ω)
Solderability	Immerge into 245±3℃ tin stove for 2~3 seconds.	The area of soldering is over 95%
Temperature cycling	At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles.	ΔR≤±(0.5%R0+0.05Ω)
Load life in humidity	Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity.	ΔR≤±(2%R0+0.05Ω)
Load life in heat	Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and hal
