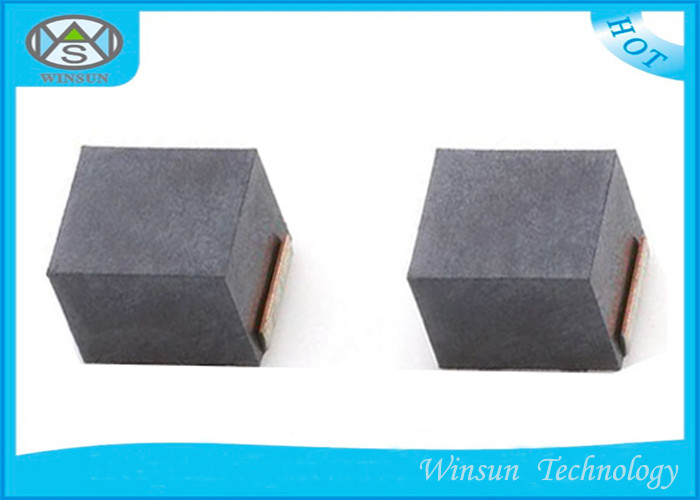

High Frequency Low Inductance TDK NLV25TR10JPF SMT Ferrite Wire Wound Inductor

SPECIFICATIONS:

* Inductance: 0.1uH

* Size: 2.5×2.0×1.8mm (L×W×T)

* Rated Current : 280mA(Max)

* DCR : 0.8 Ω (Max)

* Test frequency: 100M Hz

* The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
* Lead-free material is used for the plating on the terminal
* The electrical characteristics, reliability, shape and pad shape
are the same as the previous NL series.
* The product uses metal terminals, which realize excellent
connection reliability.
* Highly heat resistant thermoplastic resin is used to form the
exterior package.
* From 0.01μH to 100μH, all of the products in the E-12 series are
J(±5%) tolerance products.
* This product is in compliance with the RoHS Directive. Other
products with specifications that do not include exemption
regulations are also available.

* Operating temperature range :–40 ~ +105°C
* Storage temperature range: –40 ~ +105°C

* Minature size, suitable for SMT;
* Using terminal electrode structure to restrain the
parasitic component effect quite caused by lead;
* Low DC resistance , high current and high inductance;
* Execellent in solderability and heat resistance.

APPLICATIONS:
* Audio-visual equipment including TVs, VCRs and digital cameras.
* Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
* Other electronic equipment including HDDs and ODDs.

* Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

DIMENSIONS : (unit: mm/inch)
