Low DCR 1210 68uH NLV32T680JPF TDK SMD / SMT Ferrite Wire Wound Inductor ​

SPECIFICATIONS:

* Inductance: 68uH

* Size: 3.2×2.5×2.2mm (L×W×T)

* Rated Current : 50mA(Max)

* DCR :9 Ω (Max)

* Test frequency: 2.52M Hz
• This is a renewed version of NL322522.

• Highly accurate dimensions can be mounted automatically
• Terminals are highly resistant to pull forces

• RoHS compliant
• Very strong solderability by reflow soldering and soldering iron

• Highly heat resistant thermoplastic resin is used to form the
exterior package.
• From 0.01μH to 470μH, all of the products in the E-12 series are
J(±5%) tolerance products.
• The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal.
• The electrical characteristics, reliability, shape and pad shape
are the same as the previous NL series.
• The product uses metal terminals, which realize excellent
connection reliability.
• This product is in compliance with the RoHS Directive. Other
products with specifications that do not include exemption
regulations are also available.

• Conformity to RoHS Directive: This means that, in conformity with EU Directive

2002/95/EC,lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used,

except for exempted applications.

APPLICATIONS:

• Telecom and datacom applications such as XDSL Cable Modem

• Electronic equipment used in onboard automobile equipment
including car audio and ECU systems.
• Other electronic equipment including HDDs and ODDs.

• Audio-visual equipment including TVs, VCRs and digital cameras.
• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.

PRODUCT IDENTIFICATION:

* NLV 32T- 680J - PF
(1) (2) (3) (4)(5) (6)

(1)Series name

(2)Dimensions: 3.2×2.5×2.2mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 680=68uH

(5)Inductance tolerance: J=±5%

(6) Lead-free compatible product: PF Lead-free compatible product

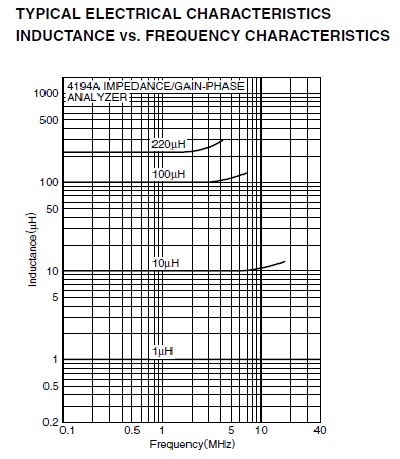

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

DIMENSIONS : (unit: mm/inch)
