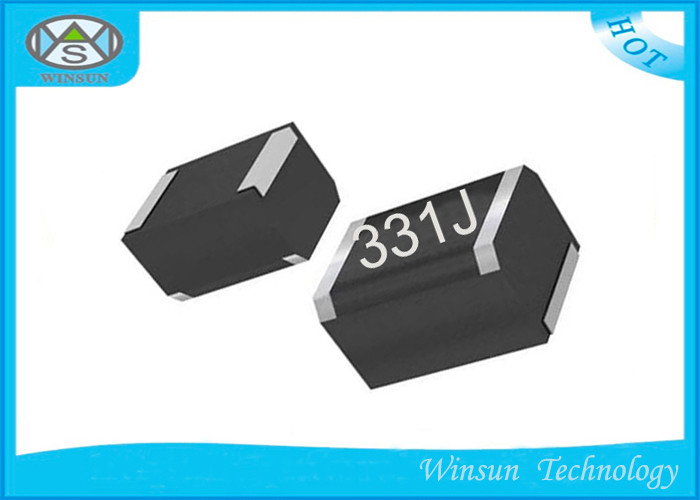

Low Frequency 4532 330uH NL453232T331JPF TDK SMD Winding Ferrite Wire Wound Inductor

SPECIFICATIONS:

* Inductance: 330uH

* Size: 4.5×3.2×3.2mm (L×W×T)

* Rated Current : 85mA(Max)

* DCR : 14 Ω (Max)

* Test frequency: 0.796M Hz
• NL Series NL453232

• Monolithic inorganic material construction
• Closed magnetic circuit avoids crosstalk
• The product uses metal terminals, which realize excellent connection reliability.
• From 1μH to 1000μH, all of the products in the E-12 series are
J(±5%) tolerance products.

• The product has good heat durability that withstands lead-free
compatible reflow soldering conditions.
• Lead-free material is used for the plating on the terminal.
• It is a product conforming to RoHS directive.

APPLICATIONS:

• Mobile Radios ,Modems etc

• Telecom and datacom applications such as XDSL Cable Modem,Set-top Box,

CATV filter/tuner,wireless LAN and so on.

• Audio-visual equipment including TVs and VCRs.
• Other electronic equipment including HDDs and ODDs.

• Electronic equipment used in communication infrastructures
including xDSL and mobile base stations.

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PRODUCT IDENTIFICATION:

* NL 453232 T- 331 J - PF
(1) (2) (3) (4) (5) (6)

(1)Series name

(2)Dimensions: 453232 4.5×3.2×3.2mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 331 =330μH

(5)Inductance tolerance: J ±5%

(6) Lead-free compatible product: PF Lead-free compatible product

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 500 pieces/reel

DIMENSIONS : (unit: mm/inch)
