High Frequency SMD Power Inductor Magnetic Shielded WS-PBS Series /
Delivery Fast
SPECIFICATIONS:
Inductance Range:1uH~1000uH
Rated Current : 0.07A~8A(Max)
DCR : 0.021~2.35 Ω (Max)
Operating temperature : –40 to + 85°C
Storage temperature: –10 to + 40°C
Test frequency: 100kHz
Various sizes are available
Small, medium and high-quantity are available
With wide frequency range
Low profile power inductor
Low DCR leaded power inductor
Large-current SMD power inductor
SMD magnetically shield power inductor
Shielded SMD power chip inductor
FEATURES:
1, Low profile
2, High saturation current
3, Magnetic shielded
4, SMT type suitable for solder reflow
5, High quality
6, Low MOQ
7, Competitive price
APPLICATIONS:
For smoothing circuit of DC-DC converter, as choke coil or chopper
coil
Suitable for use in power lines of camcorder, LCD set, OA
equipment, notebook computer, PDA, -and small size communication
equipment
Notebook
Inkjet printer
Copying machine
ADSL modem etc.
Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

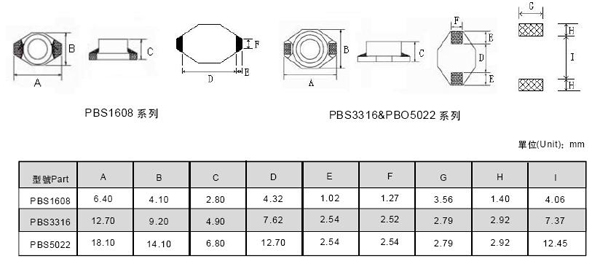

| Inductance Range | 1uH~1000uH |
| Rated Current | 0.07-8A |
| DCR | 0.021~2.35 Ω (Max) |
| Part Number | L (μH) | Tolerance | Test Freq. | DCR(Ω)Max | Isat( A) |
| PBS1608-1R0 NT | 1 | ±20% | 100kHz | 0.07 | 1.4 |
| PBS1608-1R5 NT | 1.5 | ±20% | 100kHz | 0.08 | 0.93 |
| PBS1608-2R2 NT | 2.2 | ±20% | 100kHz | 0.088 | 0.92 |
| PBS1608-3R3 NT | 3.3 | ±20% | 100kHz | 0.102 | 0.75 |
| PBS1608-4R7 NT | 4.7 | ±20% | 100kHz | 0.115 | 0.58 |
| PBS1608-6R8 NT | 6.8 | ±20% | 100kHz | 0.125 | 0.58 |
| PBS1608-8R2 NT | 8.2 | ±20% | 100kHz | 0.15 | 0.47 |
| PBS1608-100 MT | 10 | ±20% | 100kHz | 0.15 | 0.37 |
| PBS1608-150 MT | 15 | ±20% | 100kHz | 0.26 | 0.31 |
| PBS1608-220 MT | 22 | ±20% | 100kHz | 0.32 | 0.3 |
| PBS1608-330 MT | 33 | ±20% | 100kHz | 0.36 | 0.3 |
| PBS1608-470 MT | 47 | ±20% | 100kHz | 0.45 | 0.24 |
| PBS1608-680 MT | 68 | ±20% | 100kHz | 0.8 | 0.17 |
| PBS1608-101 MT | 100 | ±20% | 100kHz | 1 | 0.13 |
| PBS1608-151 MT | 150 | ±20% | 100kHz | 1.5 | 0.1 |
| PBS1608-221 MT | 220 | ±20% | 100kHz | 2 | 0.1 |
| PBS1608-331 MT | 330 | ±20% | 100kHz | 2.35 | 0.07 |
| PBS3316-1R0 NT | 1 .0 | ±20% | 100kHz | 0 .021 | 5.6 |
| PBS3316-1R5 NT | 1 .5 | ±20% | 100kHz | 0 .022 | 5.2 |
| PBS3316-2R2 NT | 2 .2 | ±20% | 100kHz | 0 .032 | 5 |
| PBS3316-3R3 NT | 3 .3 | ±20% | 100kHz | 0 .039 | 3.9 |
| PBS3316-4R7 NT | 4 .7 | ±20% | 100kHz | 0 .054 | 3.2 |
| PBS3316-6R8 NT | 6 .8 | ±20% | 100kHz | 0 .075 | 2.8 |
| PBS3316-100 MT | 1 0 | ±20% | 100kHz | 0 .101 | 2.4 |
| PBS3316-150 MT | 1 5 | ±20% | 100kHz | 0 .150 | 2 |
| PBS3316-220 MT | 2 2 | ±20% | 100kHz | 0 .207 | 1.6 |
| PBS3316-330 MT | 3 3 | ±20% | 100kHz | 0 .334 | 1.4 |
| PBS3316-470 MT | 4 7 | ±20% | 100kHz | 0 .472 | 1 |
| PBS3316-101 MT | 100 | ±20% | 100kHz | 0 .490 | 0.7 |
