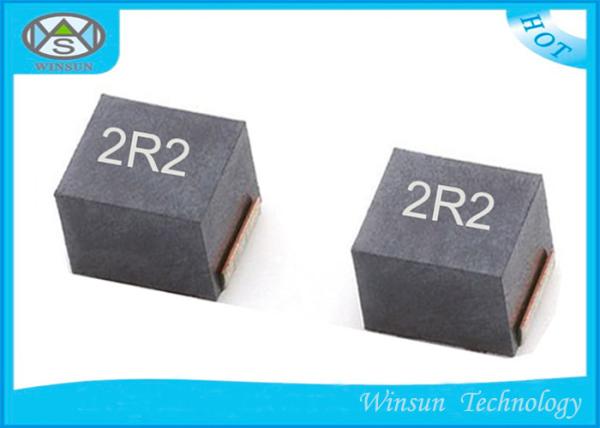

2520 2.2uH Wire Wound Inductor NLV25T - 2R2J - PF , High Saturation Current

SPECIFICATIONS:

1 Small size ,light weight

2 High Q value , Large range of inductance

3 Heat-shrinkable sleeve to protect

4 High quality
5 Low MOQ
6 Competitive price

* Inductance: 2.2uH

* Size: 2.5x2.0x1.8mm (LxWxT)

* Rated Current : 200mA(Max)

* DCR : 1.55 Ω (Max)

* Test frequency: 7.96 MHz

* Operating temperature range :–40 ~ +105°C
* Storage temperature range: –40 ~ +105°C

APPLICATIONS:

(1) Video cameras.

(2) Portable VCRs.

(3) Audio equipments.

(4) TV tunners.

(5) Switching power supplies.

(6) Other circuits of consideration aganist radiation

PRODUCT IDENTIFICATION:

* NLV 25T- 2R2J - PF
(1) (2) (3) (4)(5) (6)

(1)Series name

(2)Dimensions: 2.5×2.0×1.8mm (L×W×T)

(3)Packaging style: T Taping (reel)

(4)Inductance value: 2R2=2.2uH

(5)Inductance tolerance: J ±5%

(6) Lead-free compatible product: PF Lead-free compatible product

SPECIFICATIONS:

* Operating temperature range : –40 to +105°C
* Storage temperature range –40 to +105°C

PACKAGING STYLE AND QUANTITIES:

Packaging style: Taping
Quantity: 2000 pieces/reel

IRON SOLDERING:

Tip temperature 300 to 350°C
Heating time 3 secconds/soldering
Soldering rod specifications Output: 30W Tip diameter: 1mm

• Based on the above conditions, use a maximum product temperature of
260°C and a maximum accumulated heating time of 10 seconds as a
guideline.
• Please contact us for details.
