High Current thin SMD Power Molding inductor 2.2uh Super Low Resistance For PDA

Key Specifications/Special Features:

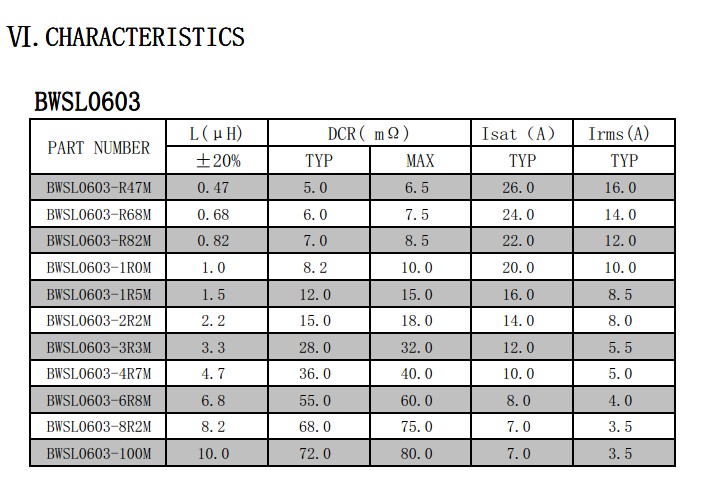

Inductance Range: 0.47uH - 10uH
Rated Current : 7A~26A(Max)

DCR : 5~72 mΩ (Max)
Operating temperature range:-25°C~+110°C with rated current
Storage temperature range:-25°C~+110°C
Large permissible D.C. current and low D.C. resistance
Tolerance of inductance:

Shielded types available

Ferrite bobbin core, low core loss at frequency

High reliability and efficiency

Small size

Winding covered with shrinkable tube

Magnetic shielding, used in high-density mounting configurations

Excellent Q-frequency characteristics

High withstanding voltage and insulation resistance

Our features:
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction dot rateless than 0.0001. MTBF more than 1000 hours.
3. Delivery Fast

Our lead time about 3-5 days .

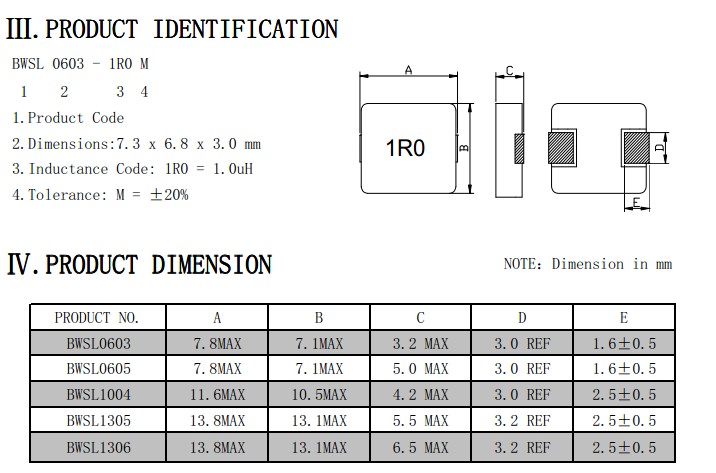

PART NUMBERING SYSTEM:
WSBWSL - 0603 - 100 - M - R
(1 ) (2) (3) (4) (5)
1 Series Name
2 Dimensions
3 Inductance 1R0＝1.0 uH.100＝10uH.101＝100uH.
4 Tolerance J＝±5%, K＝±10%, L＝±15%, M＝±20%, P＝±25%, N＝±30%
5 Packing code R: Tape&Reel B: In Bulk

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
