High Power Shielded Magnetic SMD Power Inductor WSBTSA Series For LCD Television

Product Description:

1. The surface mount inductors are designing for the smallest possible size and high performance. They are with high energy storage and very low resistance making them the ideal inductors for DC-DC conversion in the following application.

2. VGA display card, Notebook computers, PDAs, Step-up and step-down converters, Flash memory programmers, etc.

3. SMD Power Inductor Coil can be OEM according to customer's special requirements.

FEATURES:

Various high power inductors are superior to be high saturation for surface mounting .

Inductance Range: 1uH - 1500uH
Rated Current : 0.01A~10A(Max)

DCR : 0.01~10 Ω (Max)

PART NUMBERING SYSTEM:
WSBTSA - 6025 - 100 - K - R
(1 ) (2) (3) (4) (5)
1 Series Name

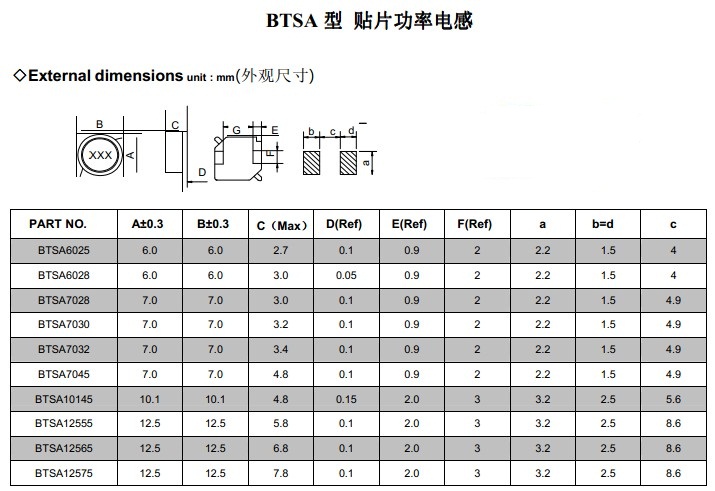

2 Dimensions
3 Inductance 1R0＝1.0 uH.100＝10uH.101＝100uH.
4 Tolerance J＝±5%, K＝±10%, L＝±15%, M＝±20%, P＝±25%, N＝±30%
5 Packing code R: Tape&Reel B: In Bulk

APPLICATIONS:

Power supplies ,

DC-DC converters,

Computer Peripherals,

Telephones, Air-Conditions,

Home electric appliance etc..

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Winsun Technology,located in Shenzhen, belongs to Hong Kong winsun group company, is the top professional Electronic Component manufacturer. The founder of Shenzhen manufactory has about 20 years experience in Electronic Components. We have 20000sqm capacitor and inductor workshop, 300 workers, automatic production line, Daily capacity of capacitor and inductor is about 10000k pcs. we are also the agent of world-renowned brands of electronic components.

Our product have passed ISO9001:2008, ROHS, 3C, CE quality authentication, which ensure our products keeping steps with the international quality. We will provide our clients with high cost-performance ration products. We can make un-common product per customers requirements. Our main marketing is America, Canada, brazil, Australia, Iran, Ukraine etc.

Your need is our mission. We firmly believe the high quality of service and support are the keys to keep long business relationship with you. Welcome to visit our factory!
